Raz-SP

Mobile  Shower Commode Chair

Raz Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

The Raz-SP mobile shower commode chair comes standard with 4” of height adjustment, an adjustable-tension fabric backrest, 22” rear wheels, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame is designed for easy side and front access by the user or attendant.

Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Raz-SP is a true prescriber-friendly, mobile shower chair.

Raz-SP Standard Features

Molded Seat

• contoured for pressure reduction and pelvic stability
• soft integral-skin foam for comfort and durability
• available with open or bridged front
• available sizes: 18″Wx17″D, 18″Wx20″D

  ---



Ischial Pelvic Alignment System

• provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
• allows centering of the aperture (opening) around the users’ ITs
• seat locks in place for transfers
• removes easily for cleaning
• optional spacers for anterior or posterior seat angle adjustment

Fixed Back

• molded, flexible vinyl upholstery – suitable for infection control environments
• provides flip-up angle adjustable armrests
• 18″ back height
• locking armrest upgrade available

Adjustable Footrests

• removable for transfers and cleaning
• swing in and out easily
• flip-up footplate
• adjust for leg length without tools
• available in regular length 16″-20½” and extended length 18″-22½”

Telescoping Caster Extensions

• provide 4″ of seat height adjustment without the use of tools
• dropped front frame tube improves access over standard toilet bowls

Multi-Position Axle Plates

• provide up to 4″ of vertical seat height and 1.5″ of horizontal adjustment for optimum user / toilet bowl access
• allow use of 22″ or optional 24″ rear wheels

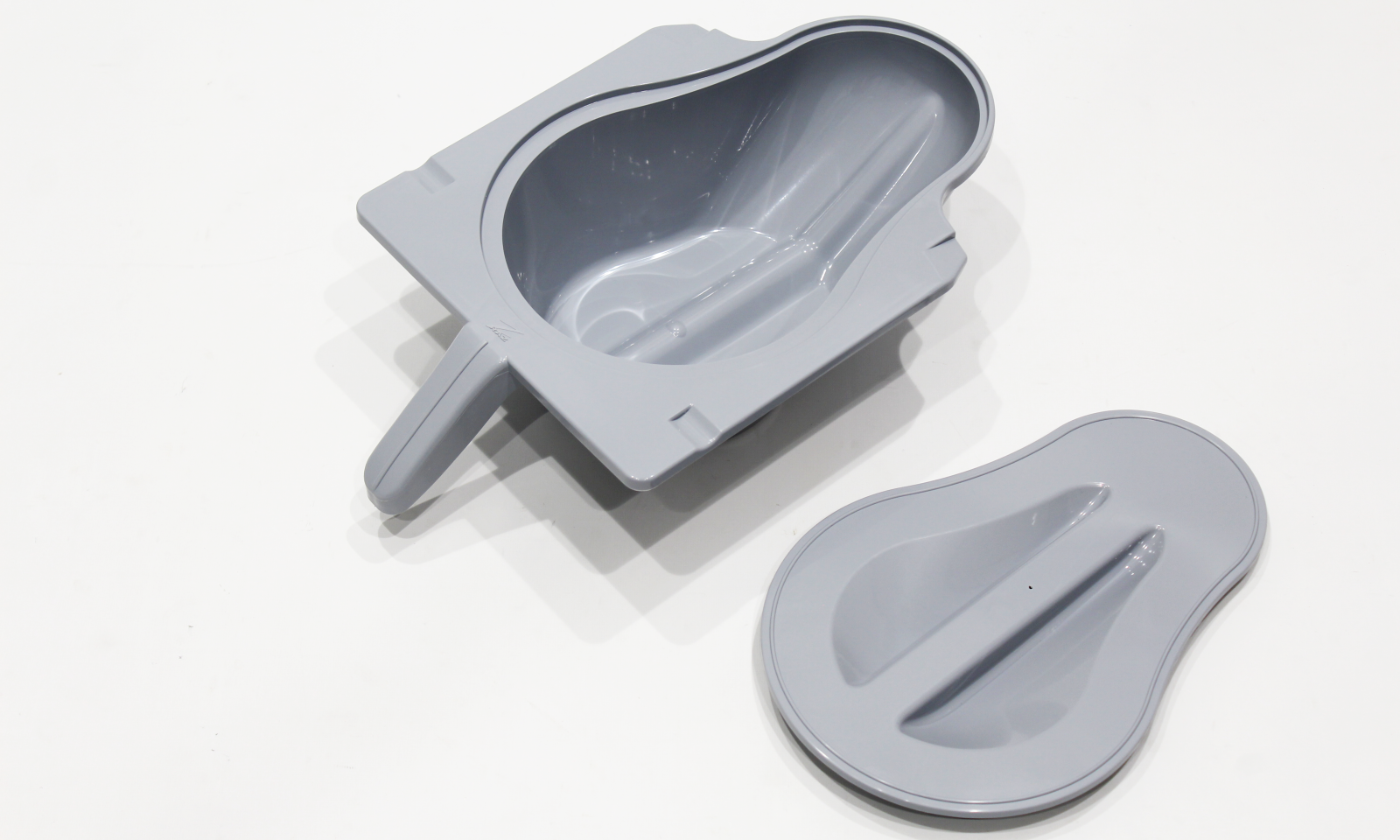

Commode Pan

• Injection-molded pan is designed for function
• Includes a lid for splash and odor control
• Wide handle angled at 45 degrees provides better ergonomics
• Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
• Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
• Fits in a standard autoclave and Arjo Tornado Washer
